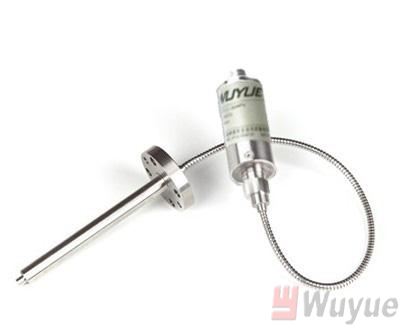

PT2617B high temperature melt pressure transmitter



PT2617B high temperature melt pressure transmitter

Wuyue's PT2617B series high accuracy pressure transmitters apply to measurements which requires accurate datas.this product adopted special materials and allayed elasticity diaphragm to lower the combined error. The performance indicators reach world class level. Perfect substitutes of like product from BARMAG, DYNISCO, GEFRAN, RKC

Feature: High accuracy, Sealed with stainless steel, Easy installment, Good stability. Calibration on both zero and span, Amplified signal can be directly input in PLC.High performance of anti-interference.



PARAMETER:

  • Pressure ranges:0-5 to 0-200MPa
  • Accuracy: < ±0.5% FS
  • Signal output:0~5V; 0~10V; 4-20mA
  • Working voltage:24VDC (12~36)VDC
  • Electrical  Connector: common 5pin connector
  • Process connection: flange, other type on request
  • Temperature resistance of diaphragm:400°C
  • Overload pressure:1.5*FS
  • CE Approved  high temperature melt pressure transmitter
