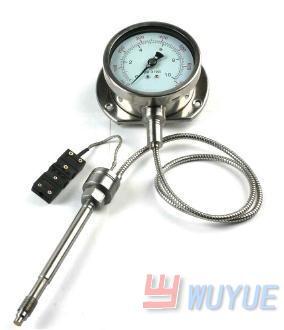

PT166 instant Dual-function with temperature and pressure measuring gauge



PT166 instant Dual-function with temperature and pressure measuring gauge

PT166 instant Dual-function with temperature and pressure measuring gauge, with the same pressure measuring part of PT124,is equipped with another temperature sensor, and this makes the probe can measure both pressure and temperature on a single spot.  This series offer an optional melt temperature measurement with type J, K, E thermocouples or RTD.

Features: Good temperature resistance performance, Instant indicator of pressure



PARAMETER:

  • Pressure ranges: 0~5MPa~200MPa
  • Accuracy:1%FS;1.5%FS
  • Temperature resistance of the diaphragm:400°C
  • Standard threading: 1/2-20UNF,M12*1.5,M14x1.5,M18*1.5 M22*1.5,G3/4 ;other versions or flange-mounted on request
  •  Housing material:316stainless steel
  • CE Approve
