PT1366Bmelt pressure transmitter

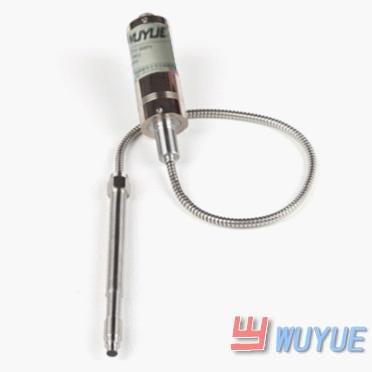

PT1366B high temperature melt pressure transmitter

Wuyue's PT1366B series high temperature melt pressure transmitters are our patented product with new characteristic, such as: rigid rod, metal hose for isolation, diaphragm spacer assembly, super stability and accuracy. Products are applied to measure and control the pressure as well as temperature of those high temperature fluid medium of extruders for such as fiber, polyester, rubber, plastics.

Features: Anticorrosion and wear resistance coating extends its service life by more than 5 times

PARAMETER:

  • Pressure ranges: any scale from 0-200MPa
  • Accuracy:< ±0.5% FS; < ±1.0% FS
  • Signal output:4--20mV/V,0--5--10V
  • Working voltage:24VDC
  • Calibration:80%FSO+1%
  • Maximum temperature resistance of diaphragm:350°C
  • Electrical Connector: special 7pin connector
  • Standard threading: 1/2-20UNF, M14x1.5, M22*1.5,M18*1.5 ;other versions on request
  • Wuyue's melt pressure transmitter got CE Approved    high temperature melt pressure transmitter
